What Is Limited Slip Differential ?

Spread The Love By Sharing This..!!

Is it accurate to say that you are mindful of the working of the limited slip differential? On the off chance that not, don’t stress since this article will give you an entire learning about its working. First told us first why we require it.

Prior to the use of this restricted slip differential, the standard differential was found. In any case, on account of the standard slip differential, there were numerous issues. One of the primary reasons why we utilize the constrained slip differential over standard differential is as beneath:

If there should arise an occurrence of the standard slip differential, both the axles of the wheels move with an alternate speed. Consider a vehicle which is running out and about, its one wheel is on the elusive surface while another wheel at first glance with a decent constriction or a surface which is dry. As the axles turn with various precise speeds, control exchanged to the wheel on the tricky street will be high while the power transmitted to the wheel on the dry surface will less. Along these lines, the wheel on the elusive surface will pivot with higher speed than the wheel on a surface with a decent constriction. Because of this enormous relative contrast in the turns of the two wheels the vehicle won’t move by any stretch of the imagination. Thus, to take care of this issue the restricted slip differential is utilized.

For the elucidation of the above section, simply allude to the accompanying picture:

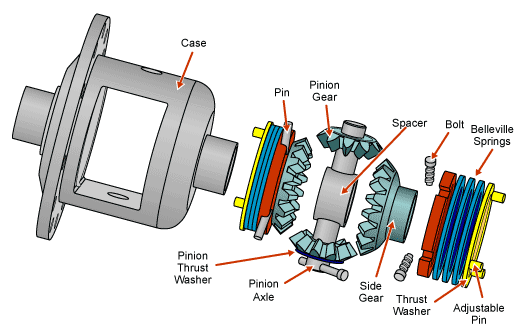

Limited slip differential

Restricted slip differential constrained slip differential is a sort of differential that restrains the measure of rotational contrast between the two yield shafts.

limited slip differential

In 1935, such sort of differential was planned by the organization, ZF Friedrichshafen. Restricted Slip Differential is prominently known as LSD. Basically, there are four sorts of the LSD which are utilized in the vehicles that we see on streets. Following are the four sorts of the LSD that you should know:

  • Electronically Controlled LSD
  • LSD of settled esteem
  • LSD which are worked by the torque
  • Speed Sensitive LSD


As previously mentioned, an LSD comprises of the grasp pressed get together. In the grasp pack get together, there are many steel plates, contact plates and riggings are available. Grinding plates have an unpleasant coating inside them. This implies when the vehicle gets quickened, the whole erosion constrain between the plates and apparatuses urge the grip pack get together to pivot as a solitary unit. Along these lines, both the wheel, right and left, move in a similar course with a similar speed. What’s more, in this way, our vehicle runs easily whether both the wheels are on the elusive streets or on the streets with the great constriction. The region between the two arrangements of frictional and steel plates is loaded up with the pre-stack springs.

A differential permits the two wheels on a similar hub to turn at various rates. That is the reason it’s known as a differential… a restricted slip differential enables them to turn at various speeds however just to a limited degree.

The purpose behind this is supposing that there is no constraint, one wheel can be ceased totally and the other wheel can be turned with 100% of the power going into the differential. You don’t generally need that to occur, and you can envision scenes of vehicles being stuck in the mud in old films where one wheel is stuck and the other is turning like insane however going nowhere. There are distinctive innovations to accomplish this. Some are mechanically and consequently controlled, while some propelled frameworks can utilize PCs/gadgets to control the grip and subsequently how much power goes to each wheel.

Watch the video underneath to see better working-

Constrained slip differential has a grasp pack behind both the sun equips in the differential Assy.

When one wheel begins turning uninhibitedly, the sun outfit presses against the grasp pack and makes a rubbing which prompts a little measure of torque diverted to the other stationary wheel.

This begins off the stable vehicle.
