What is Hydraulic Braking System and How It Works?

Spread The Love By Sharing This..!!

Why We Need Hydraulic Braking System

Before the hydraulic braking system the type of braking system the kind of stopping mechanism utilized was mechanical stopping mechanism, so now the inquiry emerge in the event that we as of now have mechanical stopping mechanism so why pressure driven stopping mechanism? Allows simply discover.

  • As the braking of a car vehicle is an extremely urgent wellbeing part so the reactions from the brake pedal to the last braking must be speedy which was a disappointment of a mechanical kind stopping mechanism and is exceptionally very much accomplished by the water powered slowing mechanism which gives fast braking.
  • The brake compel created by water driven stopping mechanism is high when contrasted with the mechanical braking which is an essential factor for the present super and hyper arrangement of vehicles.
  • Frictional mileage if there should be an occurrence of mechanical stopping mechanism was high because of the association of many moving parts, which is extremely all around diminished to the ideal dimension with the presentation of pressure driven slowing mechanism which has less moving parts when contrasted with the mechanical one.
  • Brake disappointment risks in the event of water driven stopping mechanism is less when contrasted with the mechanical framework because of direct association between the actuator ( brake pedal or switch) and the brake circle or drum.
  • Plan multifaceted nature if there should arise an occurrence of mechanical braking was high which is diminished with the presentation of water powered stopping mechanism which has straightforward and effectively gathered structure.
  • The upkeep if there should be an occurrence of mechanical stopping mechanism was high because of the association of perplexing and progressively number of part which isn’t an issue with the water powered slowing mechanism as it has basic structure with less moving parts.

Types

Hydraulic braking system are characterized on 2 premise

  • Based on frictional contact instrument On this premise, water powered brakes are of 2 types –

(i) Drum brake or internal expanding hydraulic brakes.

(ii) Disc brakes or external contracting hydraulic brakes.

  • Based on brake drive conveyance on this premise, pressure driven brakes are of 2 types-

(i) Single acting hydraulic brakes

(ii) Dual acting hydraulic brakes

We have effectively comfortable with these terms from our keep going article on sorts of braking so allows simply learn about their development and working.

Constructional Details

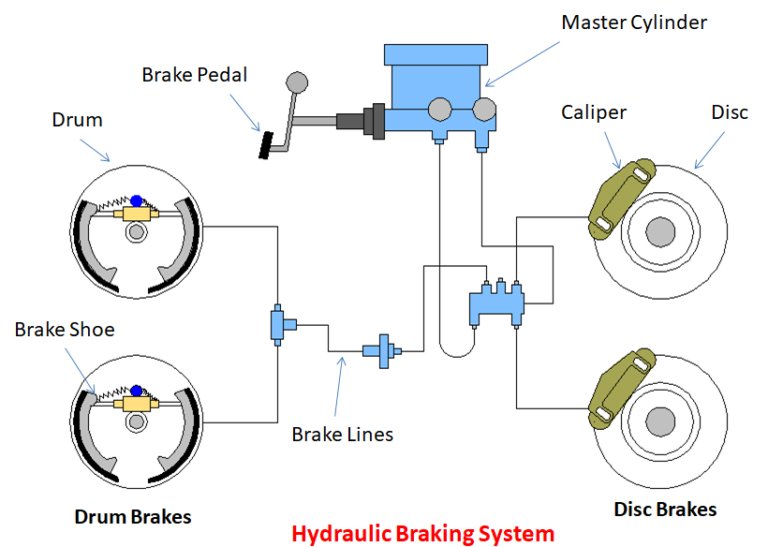

Principle Parts of Hydraulic Braking SystemOn the Basis of Frictional Contact Mechanism

Drum Hydraulic Brake or Internal Expanding Hydraulic Brakes-

In drum water powered slowing mechanism the parts included are-

Brake pedal or brake switch In pressure driven slowing mechanism same as other braking brake pedal or brake switch is required by the driver to apply braking, this brake pedal or brake switch is joined with the ace barrel through mechanical pole or associating bar.

Ace cylinder– It is the straightforward chamber and cylinder course of action ( allude to article on ace barrel) which changes over the mechanical power from the brake pedal into the water driven weight.

The brake pedal is associated with the ace chamber’s cylinder in such a mold, to the point that the development of pedal causes forward and backward movement of the cylinder inside the ace barrel.

Brake liquid store – it is the basic repository tank containing brake liquid which is associated with the ace chamber with the assistance of brake hose.

Brake lines-They are the empty high weight metal cylinder that associates the ace chamber with the drum barrel inside these brake lines high weight brake liquid from the ace barrel streams which is in charge of further brake incitation.

Drum barrel It is the another chamber fitted inside the drum of the drum brakes and is associated with the brake shoes , the high weight brake liquid from the brake lines results in these present circumstances chamber.

Brake drum (allude to article on drum brake) – It is lodging of drum barrel , brake shoes and spring , the external piece of the drum turns with the haggle part comprising the brake shoe and chamber stays stationary.

Circle Hydraulic Brakes or External Contracting Hydraulic Brakes-

Circle pressure driven parts and drum water driven brake parts are relatively same that are

Brake pedal or brake switch Exactly same as drum brakes referenced previously.

Ace barrel Same as drum brakes

Brake liquid repository Same as drum brake.

Brake lines – Same as drum brake however here they associate the ace chamber with the circle caliper barrel.

Circle rotor-It is the metallic plate fitted with the wheel center point in such a form, to the point that it turns with the wheel of a vehicle in addition plate rotor is the surface that reach the brake shoe so as to stop or de quicken the vehicle.

Plate caliper-It is a little stationary part fitted over a circle simply like a cinch, inside which there is a lodging of brake shoes and water driven chamber, when the brakes are connected the brake shoes inside the caliper contracts and reach the pivoting plate so as to give braking.

On the Basis of Brake Force Distribution

Every one of the segments of single acting water driven brakes and twofold acting pressure driven brakes whether it’s a drum type single acting brake or plate type single acting brake are same as referenced over, the main distinction is kind of ace chamber utilized which chooses the brake constrain conveyance i.e. In bicycles single wheel braking or twofold wheel braking, In vehicles two wheel braking or all wheel braking. So allows simply observe that in detail.

  1. Single Acting Hydraulic Brakes-

In single acting sort of water powered brakes, straightforward single barrel kind of ace chamber is utilized which gives constrained pressure driven weight which must be moved single way i.e. In bicycles just single wheel, In autos – just single pair(front or back) of wheels.

  1. double Acting Hydraulic Brakes-

In twofold acting kind of water powered brakes, twofold or pair ace chamber is utilized which gives higher brake drive which can be moved twofold way i.e. the two wheels in bicycles and every one of the wheels in vehicles.
