How to Calculate the Right Size of Solar Charge Controller

A solar charge controller is a device that regulates the voltage and current from the solar panels to the battery and load.

It is essential to choose the right size of solar charge controller for your solar system, as it can affect the performance and lifespan of your battery and solar panels.

There are two main types of solar charge controllers: PWM (pulse width modulation) and MPPT (maximum power point tracking).

PWM controllers are simpler and cheaper, but they are less efficient and can only handle the same voltage as the battery. MPPT controllers are more advanced and expensive, but they can handle different voltages and convert excess voltage into more current, thus increasing the efficiency and output of the solar system.

To calculate the right size of solar charge controller, you need to know the following information:- The rated power (in watts) and voltage (in volts) of your solar panel array- The nominal voltage (in volts) of your battery bank- The safety factor (usually 1.25 or 1.3) to account for losses and variationsThe basic formula to calculate the minimum current rating of the solar charge controller is:**Current rating = (Solar panel power x Safety factor) / Battery voltage**For example, if you have a solar panel array with a rated power of 300 watts and a voltage of 24 volts, and a battery bank with a nominal voltage of 12 volts, you can use the following steps to calculate the right size of solar charge controller:-

Step 1: Multiply the solar panel power by the safety factor: 300 x 1.25 = 375 watts-

Step 2: Divide the result by the battery voltage: 375 / 12 = 31.25 amps-

Step 3: Round up the result to the next whole number: 32 ampsTherefore, you need a solar charge controller with a minimum current rating of 32 amps.

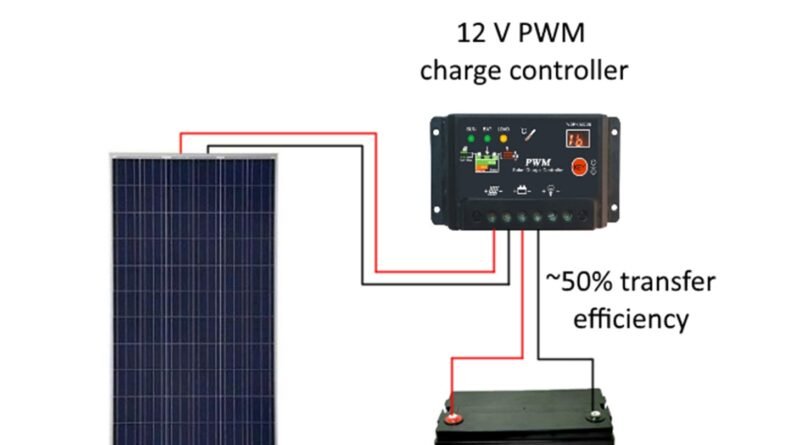

You can choose either a PWM or an MPPT controller, depending on your budget and preference. However, if you choose a PWM controller, you need to make sure that the solar panel voltage matches the battery voltage, otherwise you will lose some power.

If you choose an MPPT controller, you can use any solar panel voltage that is higher than the battery voltage, as the controller will adjust it accordingly.
