What is the minimum distance between data and power cables?

Spread The Love By Sharing This..!!

What is the minimum distance between data and power cables?

Answer

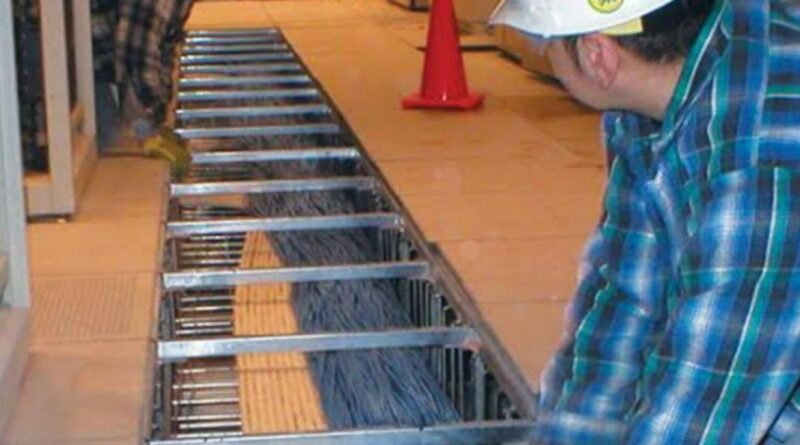

When installing network cabling, it is important to maintain a minimum of **6 inches (200 mm)** distance between power and data cables.

If the cables must cross, they should cross perpendicularly, not in parallel¹.

The minimum separation distance between unscreened power and unscreened UTP cable is **200 mm**.

This is reduced to **50 mm** for screened data cable and to just **30 mm** if the power cable is screened³.

Connectix recommends that power and data cables are installed with a **200 mm** separation wherever possible.

A **600 mm** separation should be maintained between data and three-phase power cables.
