EVAPORATIVE EMISSION CONTROL (EVAP) SYSTEM: PARTS, TYPES AND WORKING PRINCIPLES

Spread The Love By Sharing This..!!

The motivation behind evaporative outflows frameworks is to diminish or dispose of the arrival of vaporized HC into the air. The HC vapors, for example, unpredictable natural mixes (VOCs), respond in the environment with nitrogen oxides (NOx) and add to the development of ground level ozone and photochemical brown haze. Ground-level ozone is an air toxin with unsafe impacts to plants, human respiratory frameworks, and an aggravation to our eyes.

The Evaporative Emission Control (EVAP) System seals the fuel arrangement of the vehicle so as to keep fuel vapors from the fuel tank and fuel framework from getting away into the environment. This is critical in light of the fact that fuel vapors contain an assortment of hydrocarbons. Hydrocarbons frame brown haze when they respond with air and daylight.

Gas vanishes rapidly, so if the fuel framework is available to the environment a vehicle can contaminate 24 hours out of each day without being turned on. These uncontrolled evaporative emanations represent as much as 20% of the contamination delivered by a vehicle!

Kinds OF EVAPORATIVE EMISSIONS

Kinds of evaporative emanations are characterized into five classifications:

• Diurnal: This speaks to fuel that vanishes because of the ascent in encompassing temperature.

• Running Losses: Represent gas that vaporizes because of the warmth of the motor and fumes framework amid typical task.

• Resting Losses: Natural pervasion that happens from the fuel conveyance framework while not working under encompassing conditions.

• Hot Soak: Vaporization of fuel because of the held warmth of the motor after the motor is killed.

• Refueling: Represents the fuel vapors that escape from the tank by the removal of fluid fuel.

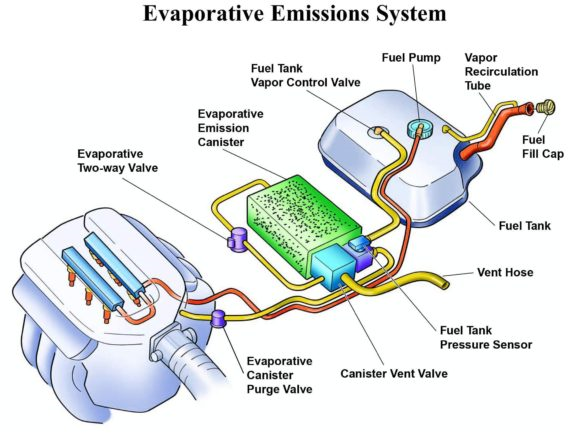

EVAP SYSTEM COMPONENTS

The real segments of the EVAP framework are:

• Fuel Tank:

The fuel tank clearly stores the gas when you top off. In any case, you realize when individuals let you know not to keep filling the tank after the siphon naturally stops? That is on the grounds that the tank has some development space at the best so the fuel can grow without flooding or compelling the EVAP framework to spill.

• Gas Cap:

Fix until snap. The gas top closes the filler neck of the gas tank from the outside air. Harmed or missing gas tops are the most widely recognized reason for EVAP framework disappointment codes that trigger the check motor light.

• Liquid-Vapor Separator:

This keeps fluid gas from entering the EVAP canister, which would over-burden its capacity to store fuel vapors.

• EVAP Canister:

This canister is associated with the fuel tank by the tank vent line. The EVAP canister houses 1-2 pounds of actuated charcoal that demonstrations like a wipe by retaining and putting away fuel vapors until the cleanse valve opens and permits the vacuum of the motor admission to siphon the fuel vapors from the charcoal into the motor admission complex.

• Vent Control Valve:

This permits the stream of the fuel vapors from the fuel tank into the EVAP canister.

• Purge Valve/Sensor:

Permits motor admission vacuum to siphon the exact measure of fuel vapors from the EVAP canister into the motor admission complex.

• Vent Hoses:

The methods by which the fuel vapors stream to various parts of the EVAP framework.

• Fuel Tank Pressure Sensor:

Screens the weight inside the fuel tank for breaks and to ensure excessively weight does not assemble.

• Fuel Level Sensor:

Screens the dimension of fuel in the tank.

WORKING PRINCIPE

The evaporative discharge control (EVAP) framework catches fuel exhaust and different emanations.

At the point when fuel dissipates inside the gas tank, the abundance vapors are exchanged to the charcoal canister. They’re put away there until the point when they can securely be exchanged back to the motor to be singed with the ordinary air-fuel blend.

At the point when that is prepared to occur, a valve makes a vacuum that draws the vapors into the motor. Natural air is additionally attracted through the vents and valves to blend with the vapors for better burning. These frameworks can be controlled mechanically, or like on most on more up to date vehicles, through the motor’s PC.

In the event that the fuel tank was fixed tight, the fuel siphon could make enough negative strain to crumple it.

Along these lines, On more seasoned EVAP frameworks, the tank is vented by a spring-stacked valve inside the gas top. While, On more current vehicles, it is vented through the EVAP canister.
